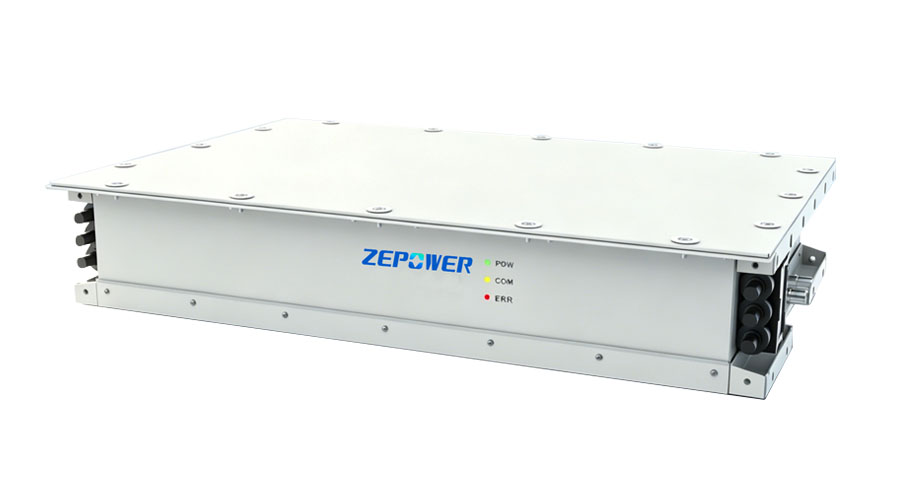

Product Features:
High protection level: P66+C5 protection, fearless of extreme temperature and sandstorms
Safe and reliable: Level topology design, link safety and reliability
Quick response: Domain power grid adaptation, millisecond power response
Strong adaptability: Fully adaptable battery cells, covering multiple scenarios
Network black start: Can network black start, voltage high-speed reconstruction
High power density: High power density, silent and long-lasting operation
Precise temperature control: Quasi temperature control technology improves cycle life
Communication reliability: Communication redundancy guarantee, reliable fault isolation
Plug and play: Modules are plug and play, easy to operate and worry free
| DC Side | |
| Maximum DC voltage | 1500V |
| DC Voltage Range | 1000～1500V |
| AC Side | |
| Rated Power | 390/430kW |
| Rated AC Current | 325/360A |
| Overload Capacity | Long term operation with 1.1 times overload, 1.2 times 10 minutes, 1.5 times 10 seconds |
| Communication Wiring Method | 3W+PE |
| Grid-connected Operation | |
| Rated Grid Voltage | 690VAC |
| Voltage Range Of Power Grid | -10%~+10% |
| Rated Grid Frequency | 50Hz/60Hz |
| Frequency Range | ±5Hz |
| Current Harmonic (THDi) | ≤3%(Rated power) |
| Adjustable Range Of Power Factor | -1～+1 |
| Off-grid Operation | |
| Rated Output Voltage | 690V |
| Rated Output Frequency | 50Hz/60Hz |
| Voltage Harmonic (THDu) | ≤3%(Resistive load) |
| Output Voltage Imbalance | 2% (normal)/4% (short-term) |
| System Parameters | |
| Cooling Method | Intelligent Liquid Cooling |
| Protection Level | IP66 |
| Working Environment Temperature | -40℃~60℃ |
| Environmental Humidity | 0~100%(No condensation) |
| Altitude | 5000m |
| Communication Interface | RS485/CAN/Ethernet/Optical fiber |
| Communication Protocol | ModBus RTU/CAN2.0 |
| Dimensions (width x height x depth) | 1125*200*765mm |
| Weight | ≤150kg |
