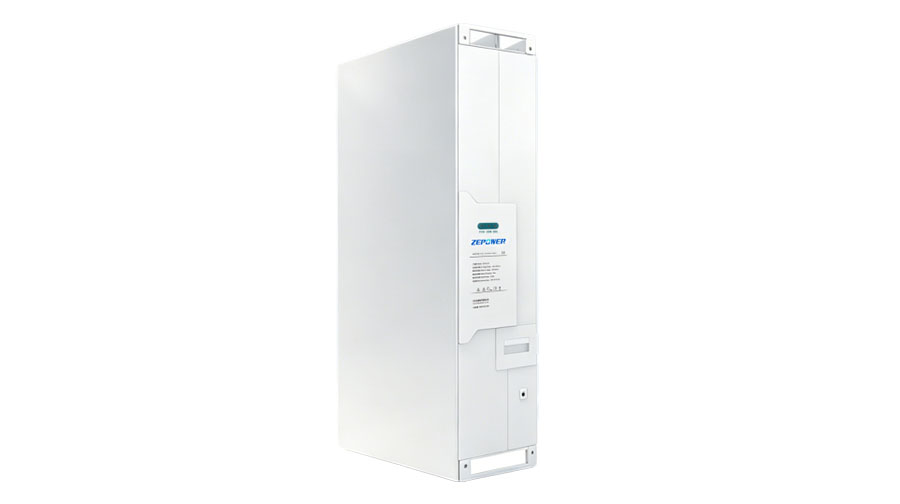

Product Features:
High protection level: IP66 protection, C5 anti-corrosion
Efficient topology: Three level ANPC, maximum efficiency of 99.05%
Wide temperature operation: 50 ℃+ambient temperature without derating
High altitude adaptation: No downgrade at 4000m altitude
Strong network construction capability: Network construction/black start/continuous high-low crossing/one-time frequency regulation/off grid
Grid friendly: Suppress broadband oscillations/grid connected harmonics
Weak network applicable: Full scene coverage, SCR=1.0 weak network environment
Communication reliability: Fiber dual network, high-speed redundancy
Plug and play: Modular design, plug and play
Intelligent operation and maintenance: Cluster level management reduces operation and maintenance costs
Precise isolation: Relay+fuse, precise fault isolation
| DC Side | |
| Maximum DC Voltage | 1500V |
| DC Voltage Range | 1000～1500V |
| AC Side | |
| Rated Power | 215kW |
| Rated AC current | 180A |
| Overload Capacity | Long term operation with 1.2 times overload, 1.3 times 10 minutes, 1.5 times 10 seconds |
| Communication Wiring Method | 3W+PE |
| Grid-connected Operation | |
| Rated Grid Voltage | 690VAC |
| Voltage Range Of Power Grid | -10%~+10% |
| Rated Grid Frequency | 50Hz/60Hz |
| Frequency Range | ±5Hz |
| Current Harmonic (THDi) | ≤3%(Rated power) |
| Adjustable Range Of Power Factor | -1～+1 |
| Off-grid Operation | |
| Rated Output Voltage | 690V |
| Rated Output Frequency | 50Hz/60Hz |
| Voltage Harmonic (THDu) | ≤3%(Resistive load) |
| Output voltage imbalance | 2% (normal)/4% (short-term) |
| System Parameters | |
| Cooling Method | Smart Air Cooling |
| Protection Level | IP66 |
| Working Environment Temperature | -40℃~60℃ |
| Environmental Humidity | 0~100%(No condensation) |
| Altitude | 4000m |
| Communication Interface | RS485/CAN |
| Communication Protocol | ModBus RTU/CAN2.0 |
| Dimensions (width x height x depth) | 213*900*740mm |
| Weight | ≤98kg |
