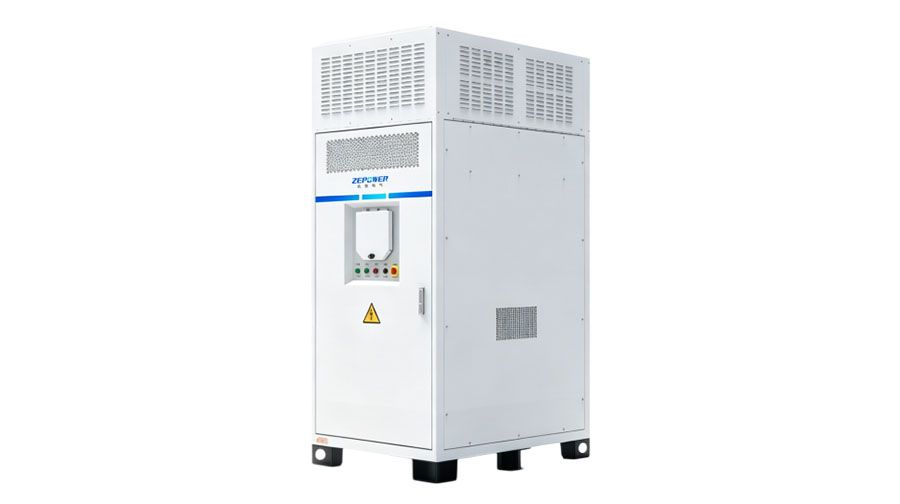

Product Features:
High protection level: IP65 protection, suitable for harsh environments
Efficient topology: Three level ANPC, with the highest efficiency
DC protection: Standard intelligent fuse to protect the DC side
Multiple control modes: Constant voltage, constant current, constant power control modes
Strong networking capability: equipped with VSG and networking functions
Island operation: Supports island operation mode
Off grid Switching: Supports seamless automatic and off grid switching
High and low pressure crossing: Capable of crossing high and low pressures
High efficiency liquid cooling: Liquid cooling heat dissipation, 50 ℃ ambient temperature without derating
Fault self diagnosis: Multiple protection, fault self diagnosis
Black start: Equipped with black start function
| DC Side | |
| Maximum DC voltage | 1500V |
| DC Voltage Range | 1000~1500V |
| Maximum DC Current | 2551A |
| Number Of DC Input Channels | 1 |
| AC Side | |
| Rated Power | 2500kW |
| Rated AC Current | 2092A |
| Grid-connected Operation | |
| Rated Grid Voltage | 690VAC |
| Voltage Range Of Power Grid | -15%~+10% |
| Rated Grid Frequency | 50Hz/60Hz |
| Frequency Range | ±5Hz |
| Current Harmonic (THDi) | ≤1.5%(Rated power) |
| Adjustable Range Of Power Factor | -1～+1 |
| Off-grid Operation | |
| Rated Output Voltage | 690V |
| Rated Output Frequency | 50Hz/60Hz |
| Voltage Harmonic (THDu) | ≤3%(Resistive load) |
| System Parameters | |
| Cooling Method | Intelligent Liquid Cooling |
| Protection Level | IP65 |
| Isolation Type | Transformer Free Isolation |
| Maximum Efficiency | 99% |
| Working Environment Temperature | -35~+60℃(>50℃Reduced operation) |
| Environmental Humidity | 0~100%(No condensation) |
| Altitude | 5000m(＞3000m derating) |
| Communication Interface | RS485/CAN/Ethernet |
| Communication Protocol | Modbus RTU/TCP , IEC104 , IEC61850 |
| Dimensions (width x height x depth) | 1000*2550*1400mm |
| Weight | 1700kg |
