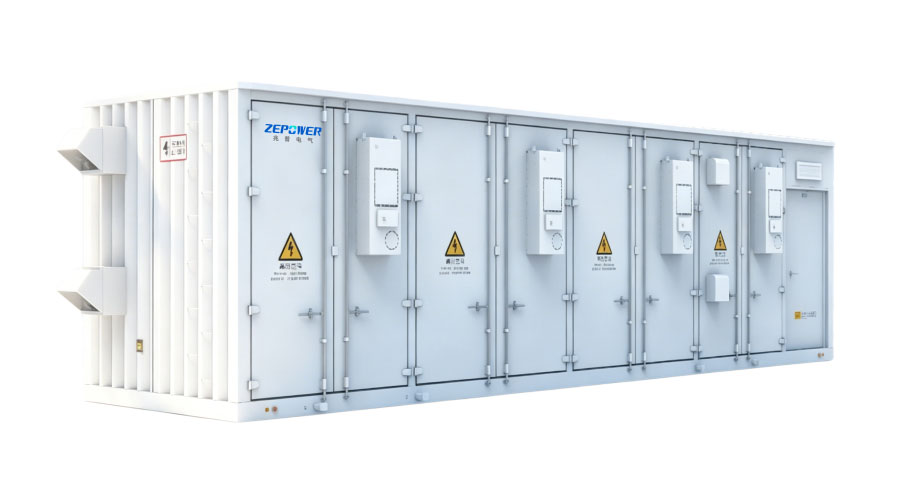

Product Features:
High protection level: IP54 protection level, strong environmental adaptability
Integrated design: Integrated design, easy installation and maintenance
Direct hanging efficiency: Direct hanging design, high overall efficiency
Automatic redundancy: Automatic redundancy design, high reliability
Multi machine parallel connection: Supports multi machine parallel connection and can be quickly expanded to hundreds of MW level
Carrier phase shifting: Carrier phase shifting design, low harmonic distortion rate
| Conventional Parameters | |
| Rated Grid Voltage | 6kV~35kV |
| Voltage Range Of Power Grid | -10%~+10% |
| Rated Grid Frequency | 50Hz |
| Frequency Range | 46.5~51.5Hz |
| Rated Power | 2MW~100MW |
| Battery Capacity | Configure according to the actual situation |
| Topological Structure | H-bridge cascade |
| Current Harmonic (THDi) | ≤3%(≥25% Rated Power) |
| Response Time/Charge Discharge Switching Time | ＜10ms |
| Overload Capacity | 1.1 times 10 minutes, 1.2 times 1 minute |
| Communication Interface and Protocol | RS485, Ethernet, ModbusRTU, Modbus_tcp, IEC104,61850 |
| Operating Mode | Active/reactive power independent control |
| Protection Function | Short circuit protection, overcurrent protection, islanding protection, communication protection, AC side undervoltage/overvoltage protection, DC side overvoltage/undervoltage protection, cooling system fault protection, etc |
| Parallel Connection Of Multiple Machines | Support |
| Redundant Function | Support |
| Cooling Method | Air conditioning/Water cooling |
| Installation Method | Indoor/Outdoor Container |
| Operating Temperature | -25~45℃ |
| Protection Level | Indoor IP20, outdoor IP54 |
| Altitude | ≤2000m |
| Network construction parameters | |
| Function | Virtual synchronous machine features, capable of voltage, frequency, and inertia support. Time constant 2~20, adjustment rate 0.5%~5% |
| Short Circuit Ratio Adaptation Range | 1.1~20 |
| Overload Capacity | Long term operation with 1.1 times overload, 1.5 times 1min, 3 times 10s |
| Phase Angle Mutation | ±180° Jumping without leaving the network |
| Switching Function | Support and off network switching, support network switching with network infrastructure |
