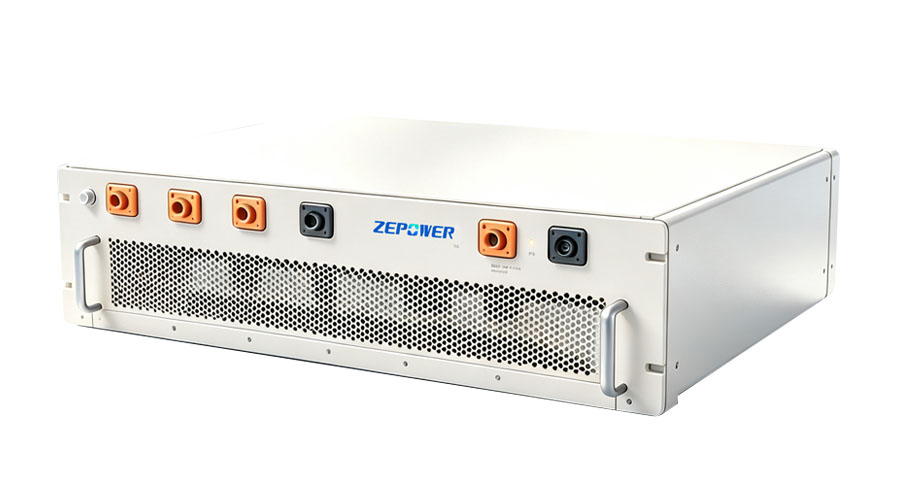

Product Features:
Strong system compatibility: Compatible with three-phase three wire and three-phase four wire systems
Flexible installation: Supports horizontal/vertical installation, front/rear wiring
Off grid Application: Meets off grid usage scenarios
Multiple working modes: Equipped with PQ/VF/VSG and other working modes
Unbalanced load capacity: 100% unbalanced load capacity
Fault self diagnosis: Multiple protection, fault self diagnosis
Black start: Equipped with black start function
| DC Side | |
| DC Voltage Range | DC580V~DC950V(3W3L), DC650V~DC950V(3W4L) |
| Maximum DC current | 200A |
| AC Side | |
| Rated Power | 125kW |
| Rated AC Current | 180A |
| Overload Capacity | Long term operation with 1.1 times overload, 1.2 times 1min, 1.5 times 10s |
| Communication Wiring Method | 3W+N+PE/3W+PE |
| Grid-connected Operation | |
| Rated Grid Voltage | 400VAC |
| Voltage Range Of Power Grid | -15%~+10% |
| Rated Grid Frequency | 50Hz/60Hz |
| Frequency Range | ±2Hz |
| Current Harmonics(THDi) | ≤3%(Rated Power) |
| Adjustable Range Of Power Factor | -1～+1 |
| Off-grid Operation | |
| Rated Output Voltage | 400VAC |
| Rated Output Frequency | 50Hz/60Hz |
| Voltage Harmonics(THDu) | ≤3%(Resistive Load) |
| Unbalanced Load Capacity | 100% |
| System Parameters | |
| Cooling Method | Smart Air Cooling |
| Protection Level | IP20 |
| Working environment temperature | -20℃~70℃(50℃The above reduction) |
| Environmental humidity | 0%~95%,No condensation |
| Working altitude | 4000m(＞2000m derating) |
| Communication Interface | RS485/CAN/Ethernet port |
| Communication Protocol | ModBus RTU/CAN2.0 |
| Maximum Efficiency | 98.50% |
| Dimensions (width × height × depth) | 645*180*540 |
| Weight | ≤65kg |
